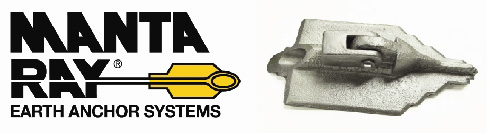

Manta Ray Earth Anchor

Manta Ray Earth Anchor‘s Features
•A rugged driven plate anchor for all types of soils
Manta Ray Earth Anchor can be installed in extremely tough soils such as caliche, decomposed rock, glacial till, and permafrost
•Large model available for swamp application
•Portable installing equipment to access difficult to reach anchor locations
•Uses the line truck (or portable unit) hydraulic system as power supply
•Every anchor is proof tested

Application
Use with standard power hub anchor rods for distribution guy anchors to 36,000 lbs

Catalog
Number
Model For PH Rod Size Ultimate Load Rating (lbs) Weight (lbs)
20210-UT-II MR-3 D62 (5/8”) 16,000 7
20229-UT-II MR-SR D75 (3/4”) or D100 (1”) 36,000 21
20036-UT-II MR-1 D75 (3/4”) or D100 (1”) 36,000 13
20199-UT-II MR-2 D75 (3/4”) or D100 (1”) 36,000 11

Notes:
Note: Catalog numbers for galvanized to ASTM A123.

For black/painted (not galvanized) add suffix “B”
