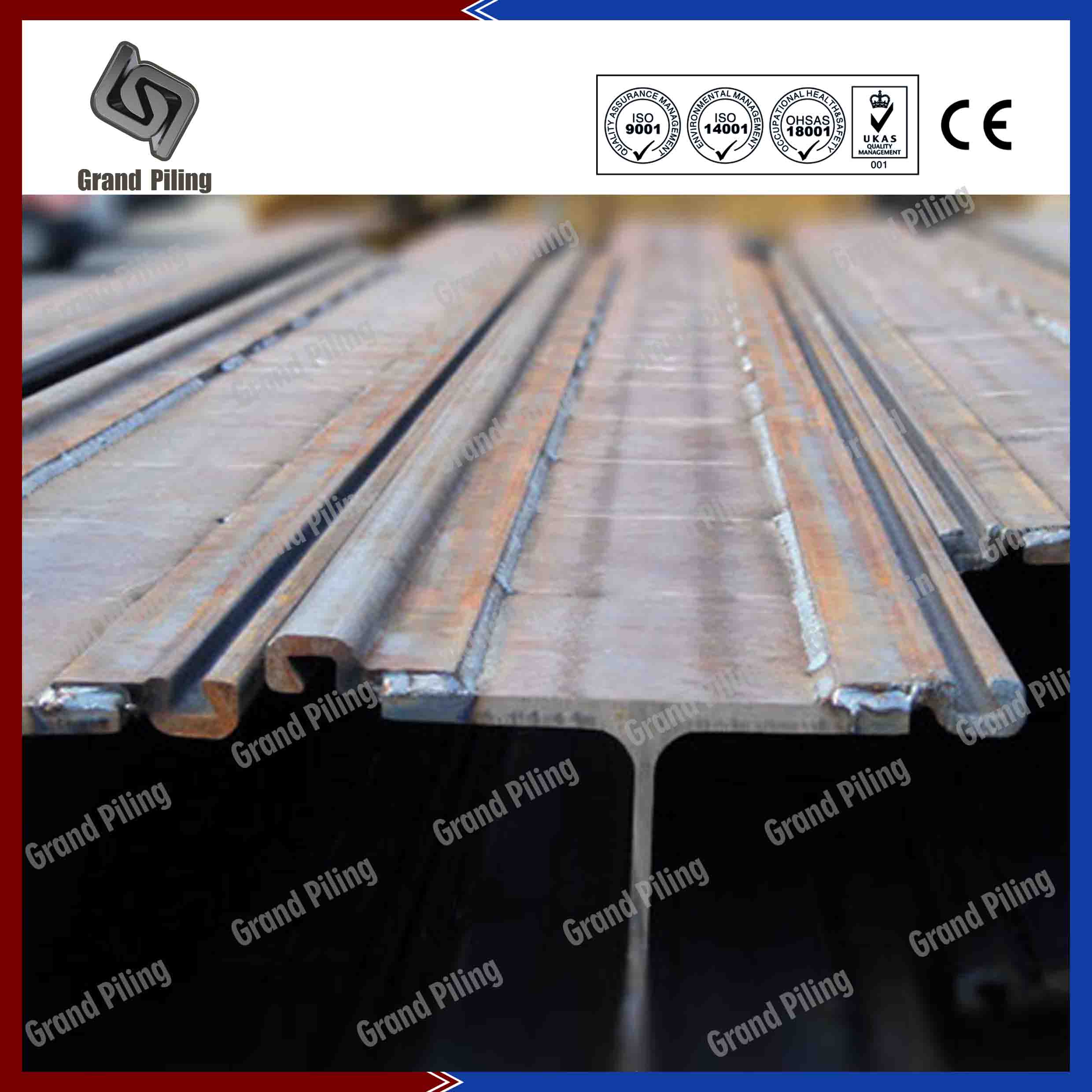

HZ Combined Wall

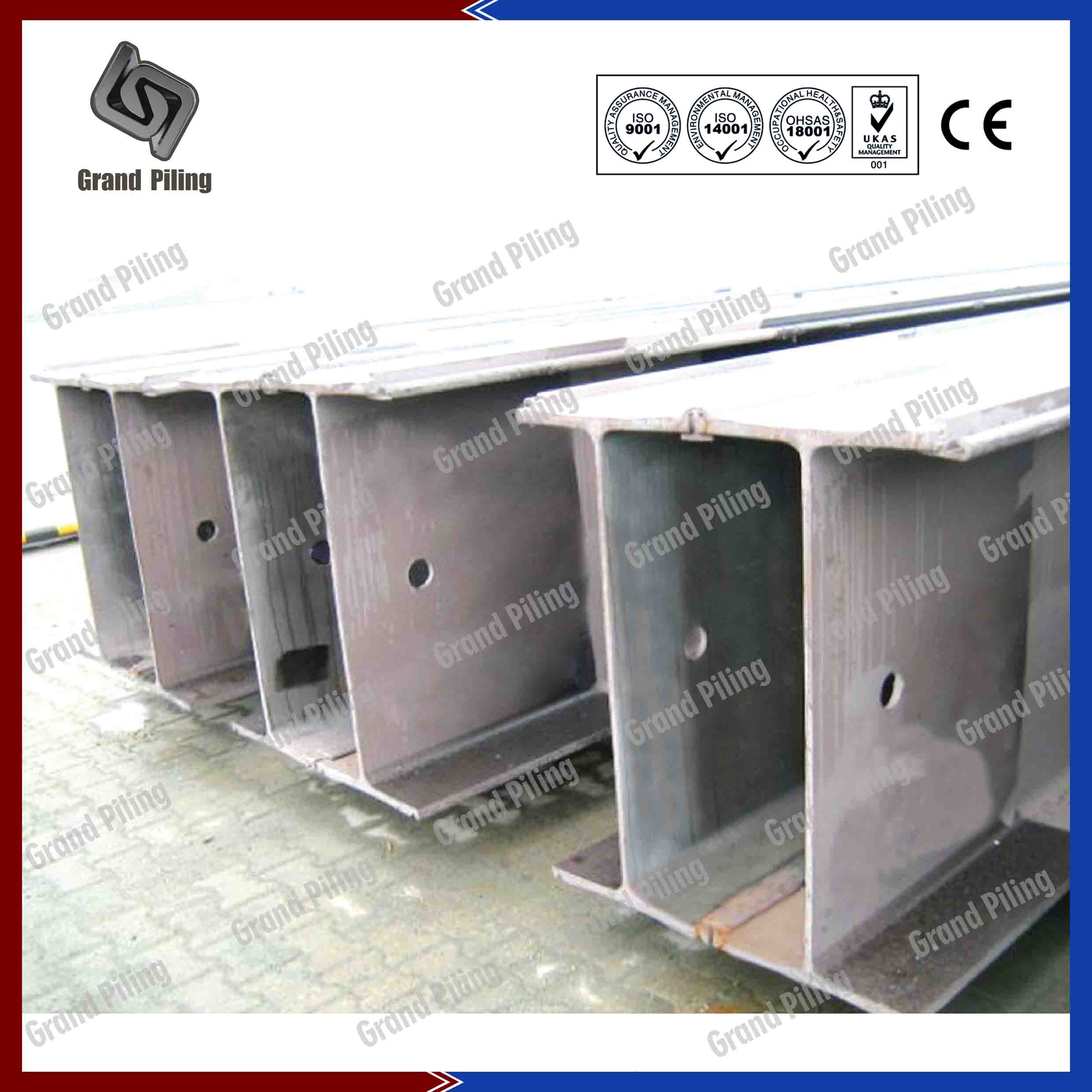

HZ Combined Wall

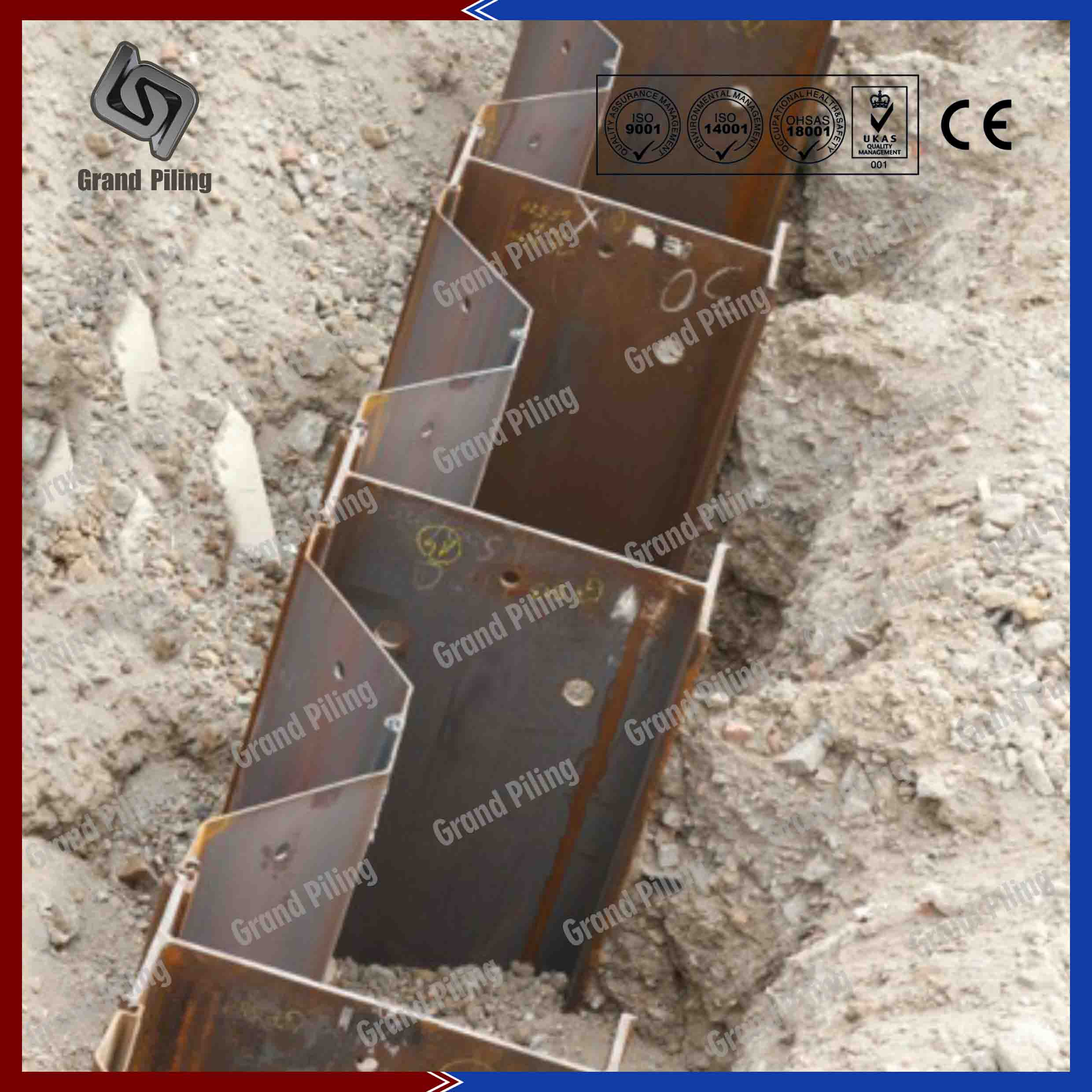

HZ Combined Wall

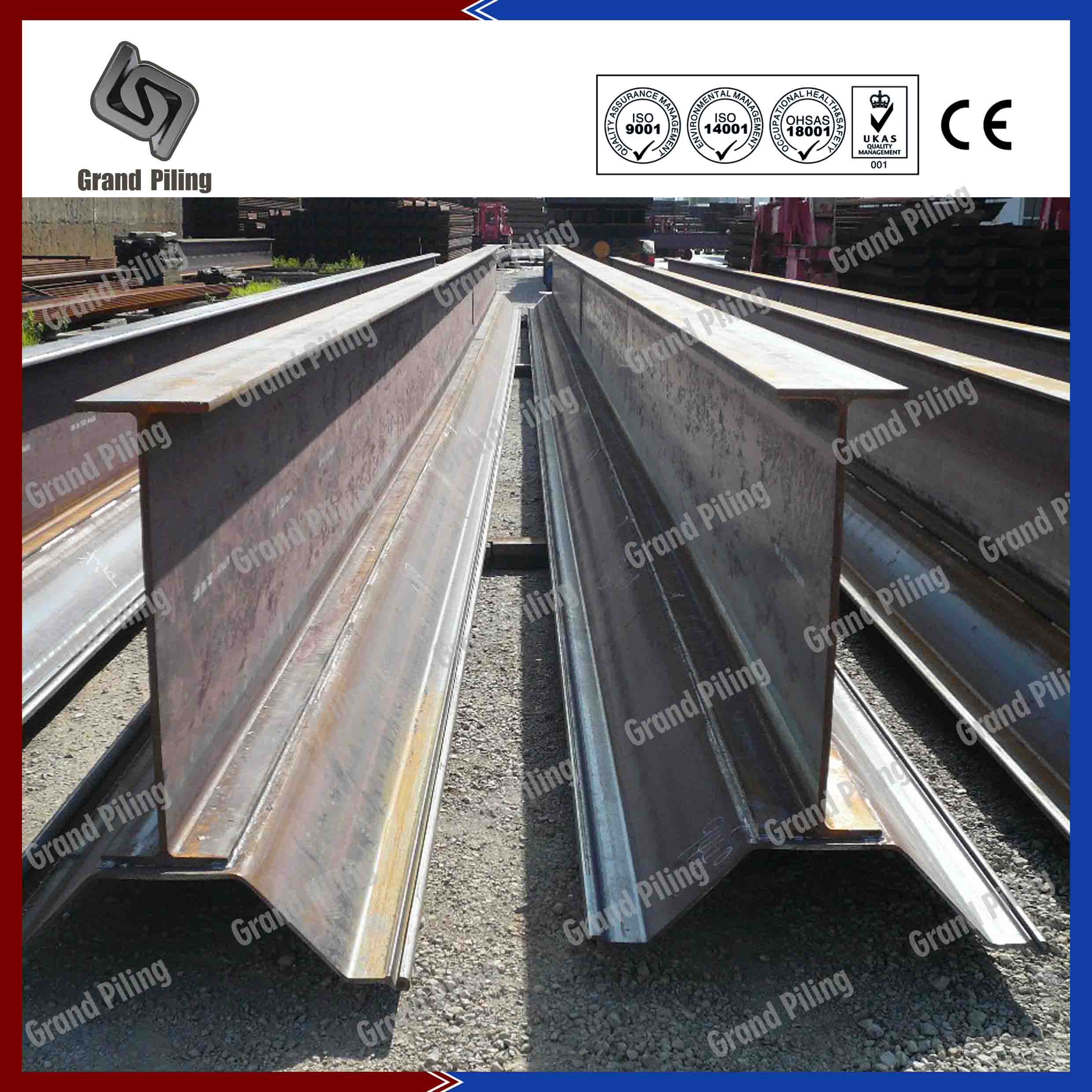

HZ Combined Wall

HZ HZM combined wall systems are combi-wall of king piles and intermediary sheet piling, which are normally used in port construction and deep foundations etc. The HZ HZM king piles are formed its shape in mills in length of over 30 meters. HZ HZM combiwall are connector by different connectors, namely RZD16, RZU16, RH16, RZD18, RZU18, RH20. Hot rolled HZ HZM king piles are big H beams with connecting system at both sides. Cold rolled HZ HZM combined walls are welded H beams together with cold formed sheet piles. HZ HZM combi-wall are normally quay wall tied back by a deadman wall or normal sheet piling wall.We have produced and shipped HZ combined walls to many sheet piling projects all over the world



Our Advantages:

Ø We can design and tailor made HZ sheet piling for you. In lots of cases, client might need to increase the thickness of flange or web due to corrosion, a smaller height due to limited space, all no problem here.
Ø Our interlocks or clutches are part of H beams, much stronger. No need to buy extra interlocks, saving costs for the  HZ combiwalls.
Ø The longest length H pile and HP bearing pile we have produced is over 50m,steel grade from S235 S355 to very high S460
Ø Almost no quantity requirements,100 or 200 tons are also okay. We have three HZM combined walls production lines, everything will be done automatically. Quick delivery time.





HZ combiwall sizes:



Table 1:Hot rolled HZ beam king pile details

Size Dimensions Weight Moment of
Inertia
Modulus
Section
h w tmax t s
mm mm mm mm mm kg/m cm4 cm3
GHZ 775A 775 460 17 17 12.5 234.7 322830 7565
GHZ 775B 779 460 19 19 12.5 249.2 361430 8235
GHZ 775C 783 461.5 21 21 14 276.9 401800 9110
GHZ 775D 787 461.5 23 23 14 291.4 430940 9780
GHZ 975A 975 460 17 17 14 265.4 561660 10290
GHZ 975B 979 460 19 19 14 279.9 606810 11130
GHZ 975C 983 462 21 21 16 313.8 677610 12395
GHZ 975D 987 462 23 23 16 328.4 723500 113245
GHZ 680M LT 631.8 460 29 16.9 14 234.7 210520 6235
GHZ 880M A 831.3 458 29 18.9 13 261.8 410780 9195
GHZ 880M B 831.3 460 29 20.9 15 287.2 446970 10055
GHZ 880M C 831.3 460 29 22.9 15 298.5 471220 10590
GHZ 1080M A 1075.3 454 29 19.6 16 232.6 799490 13990
GHZ 1080M B 1075.3 454 29 22.6 16 341.6 864440 15125
GHZ 1080M C 1075.3 456 29 25.7 18 374.6 943640 16540
GHZ 1080M D 1075.3 457 30.7 29.7 19 401.3 1020570 17850
GHZ 1180M A 1075.4 458 34.7 31 20 422.7 1078570 18795
GHZ 1180M B 1079.4 458 36.7 33 20 436.1 1129010 19680
GHZ 1180M C 1083.4 459 38.7 35 21 462.5 1203670 20840
GHZ 1180M D 1087.4 460 40.7 37 22 483.6 1262580 21925





Table 2:Hot rolled HZ combined walls with GAZ18-700

Size Dimensions Sectional Area Weight Moment of
Inertia
Modulus of
Section
b h
m mm cm2/m kg/m2 cm4/m cm3/m
GHZ 775 A 1.93 530 255.9 201 199870 4535
GHZ 775 B 1.93 530 265.5 208 214680 4885
GHZ 775 C 1.93 530 283.7 223 235600 5335
GHZ 775 D 1.93 530 293.3 230 250700 5685
GHZ 975 A 1.93 530 276.2 217 318430 5825
GHZ 975 B 1.93 530 285.7 224 341820 6265
GHZ 975 C 1.93 530 308.2 242 378510 6920
GHZ 975 D 1.93 530 317.7 249 402280 7360
GHZ 680M LT 1.927 630 256.3 201 136700 4045
GHZ 880M A 1.927 830 274.1 215 240500 5380
GHZ 880M B 1.927 830 290.5 228 259000 5820
GHZ 880M C 1.927 830 298 234 271570 6100
GHZ 1080M A 1.927 1075 315.5 248 443030 7745
GHZ 1080M B 1.927 1075 327.5 257 476090 8340
GHZ 1080M C 1.927 1075 349 274 517420 9065
GHZ 1080M D 1.927 1075 366.4 288 557070 9735
GHZ 1180M A 1.927 1075 380.4 299 586870 10220
GHZ 1180M B 1.927 1080 389.3 306 613030 10680
GHZ 1180M C 1.927 1085 406.5 319 651410 11275
GHZ 1180M D 1.927 1090 420.2 330 681600 11830



Table 3:HZ welded king piles with interlocks

Size Dimensions Sectional Area Weight Moment of
Inertia
Modulus of
Section
w h t s
mm mm mm mm cm2 kg/m cm4 cm3
GPH 775 A 775 530 17.0 12.5 299 234.7 322820 7555
GPH 775 B 779 530 19.0 12.5 317.4 249.2 361420 8225
GPH 775 C 783 530 21.0 14.0 352.7 276.9 401790 9100
GPH 775 D 787 530 23.0 14.0 371.2 291.4 430930 9770
GPH 975 A 975 530 17.0 14.0 338.1 265.4 561650 10280
GPH 975 B 979 530 19.0 14.0 356.5 279.9 606800 11120
GPH 975 C 983 530 21.0 16.0 399.8 313.8 677600 12385
GPH 975 D 987 530 23 16 418.3 328.4 723490 113235
GPH 680 630 527 22 14 298.9 234.7 210510 6225
GPH 880 A 830 527 24 13 333.5 261.8 410770 9185
GPH 880 B 830 527 25 15 365.8 287.2 446960 10045
GPH 880 C 830 527 26 15 380.3 298.5 471210 10580
GPH 1080 A 1075 527 24 16 412.2 232.6 799480 13980
GPH 1080 B 1075 527 26 16 435.2 341.6 864430 15115
GPH 1080 C 1075 527 27 18 477.2 374.6 943630 16530
GPH 1080 D 1075 527 30 19 155.2 401.3 1020560 17840
GPH 1180 A 1075 527 33 20 538.4 422.7 1078560 18785
GPH 1180 B 1080 527 35 20 555.6 436.1 1129000 19670
GPH 1180 C 1085 527 37 21 589.2 462.5 1203660 20830
GPH 1180 D 1090 527 39 22 616.1 483.6 1262570 21915





Table 4: Welded HZ combined walls with GPZ18-700

Size Dimensions Sectional Area Weight Moment of
Inertia
Modulus of
Section
b h
m mm cm2/m kg/m2 cm4/m cm3/m
GPH 775 A 1.93 530 255.9 201 199870 4535
GPH 775 B 1.93 530 265.5 208 214680 4885
GPH 775 C 1.93 530 283.7 223 235600 5335
GPH 775 D 1.93 530 293.3 230 250700 5685
GPH 975 A 1.93 530 276.2 217 318430 5825
GPH 975 B 1.93 530 285.7 224 341820 6265
GPH 975 C 1.93 530 308.2 242 378510 6920
GPH 975 D 1.93 530 317.7 249 402280 7360
GPH 680 1.927 630 256.3 201 136700 4045
GPH 880 A 1.927 830 274.1 215 240500 5380
GPH 880 B 1.927 830 290.5 228 259000 5820
GPH 880 C 1.927 830 298 234 271570 6100
GPH 1080 A 1.927 1075 315.5 248 443030 7745
GPH 1080 B 1.927 1075 327.5 257 476790 8340
GPH 1080 C 1.927 1075 349 274 517420 9065
GPH 1080 D 1.927 1075 366.4 288 557070 9735
GPH 1180 A 1.927 1075 380.4 299 586870 10220
GPH 1180 B 1.927 1080 389.3 306 613030 10680
GPH 1180 C 1.927 1085 406.5 319 651410 11275
GPH 1180 D 1.927 1090 420.2 330 681600 11830



HZ combiwall

A HZ/HZM combined wall system consists of the king pile, connectors, and AZ sheet piling installed between king piles are intermediate infill elements. The HZ/HZM beams can be single H beam or double H beams or even continuous H beams. The HZ/HZM king piles can be retaining wall elements, which resist horizontal loads or bearing piles, which resist vertical loads. While the intermediate sheet piles normally only resist the earth retaining functions or load transfer to the HZ/HZM king piles. The intermediate sheet piles can be shorter than HZ/HZM beams. Depending on the number of interlocks and king piles, HZ combined wall system have 4 different combinations: Combination 12, combination 14, combination 24, combination 26.In theory, the intermediate pile can be any AZ type sheet piles. While in practices, most intermediate sheet pile is AZ18-700 or AZ26-700,others like AZ13, AZ13-10/10, AZ18, AZ18-10/10,AZ26,AZ13-770, AZ14-770-10/10, AZ18-700, A20-700.The connectors are RZD,RZU,RH type depending on connecting elements.

Previously HZ sheet piles was the most popular solutions for permanent ports, quay wall, cofferdam, slope stabilization, wharf contstuctions etc heavy load applications, Nowadays almost all HZ combined walls are HZM sheet pile system.

The  combined walls or combiwalls are normally a more economical solutions than sheet pile with tubular pipe combined walls. Various steel grades are available for combi walls and king piles.
