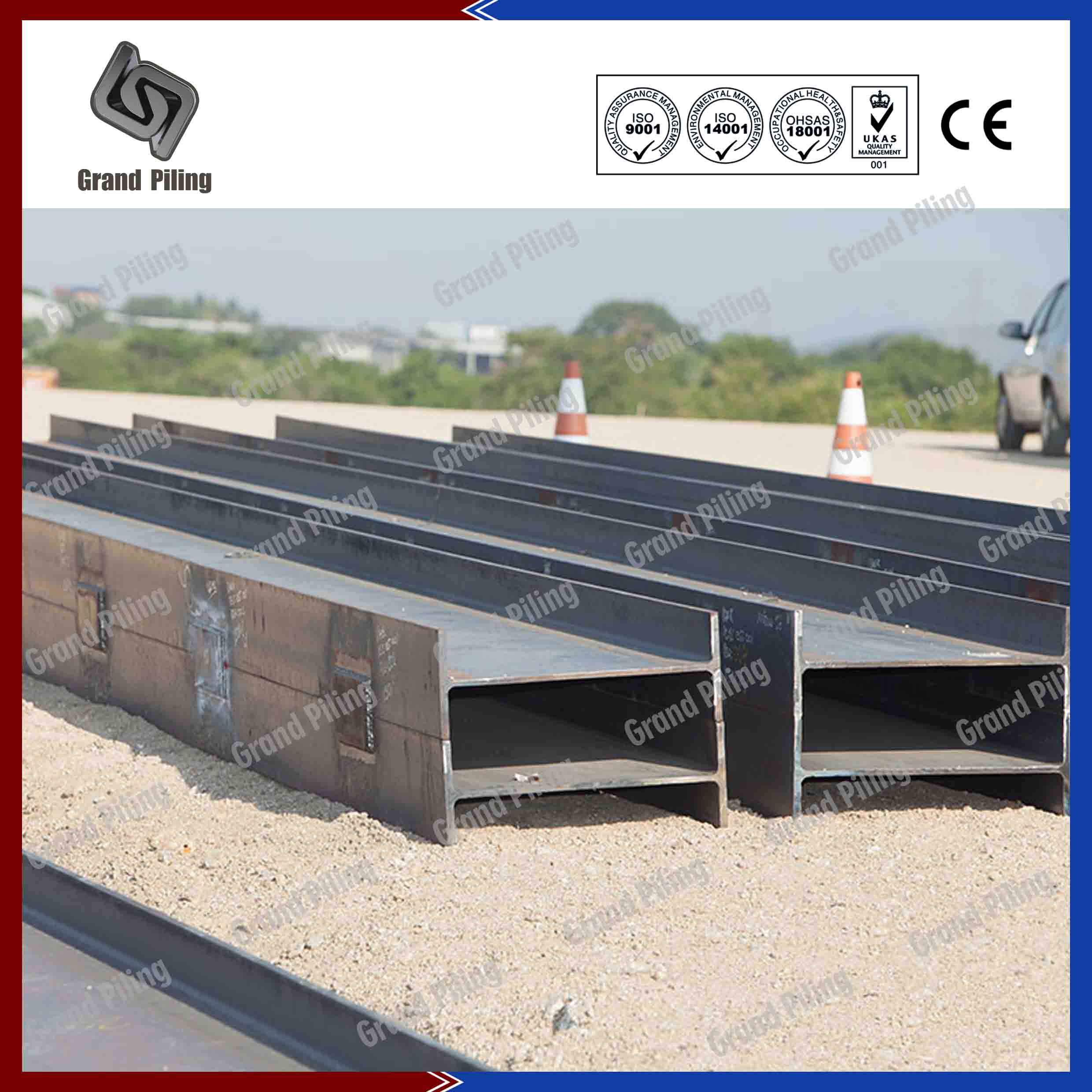

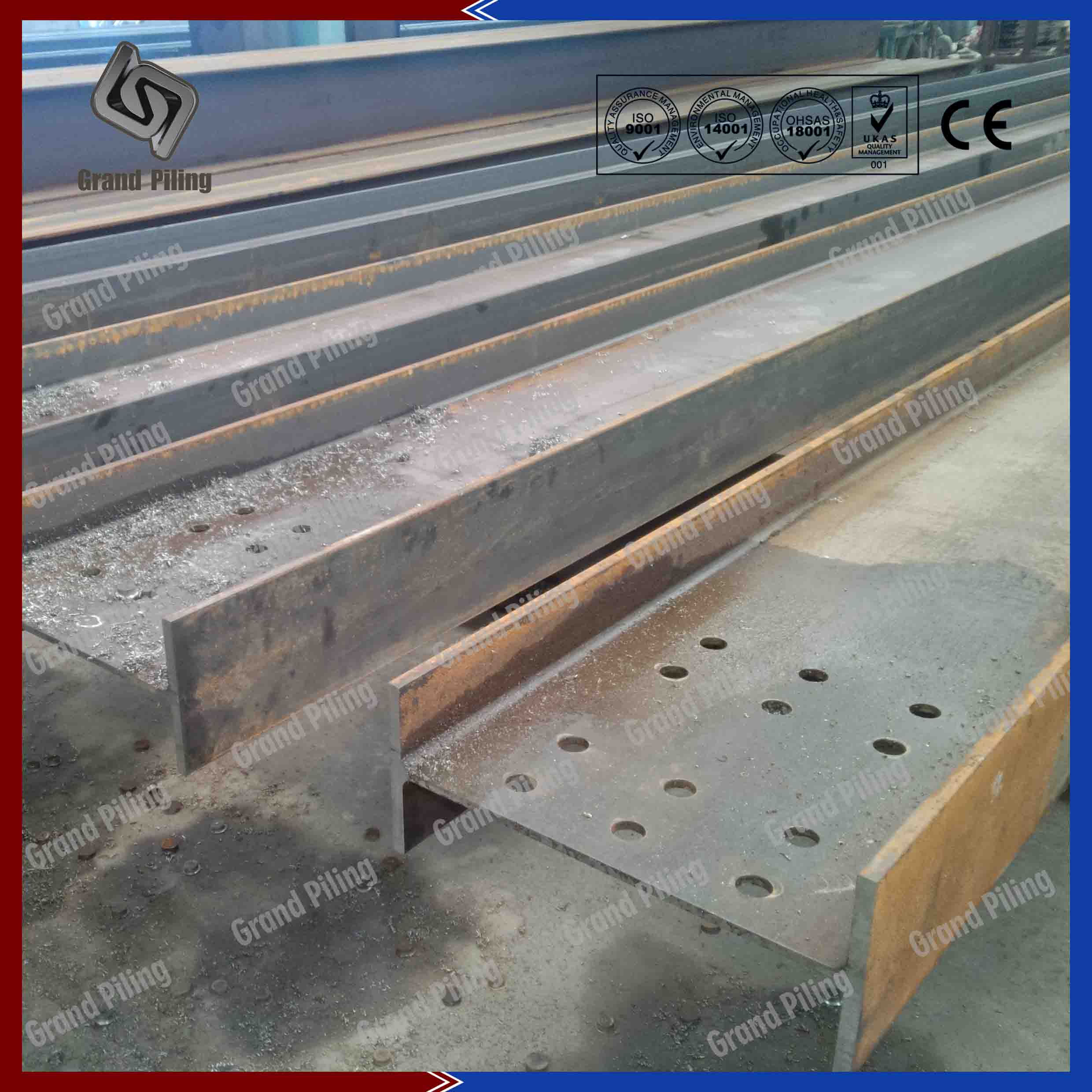

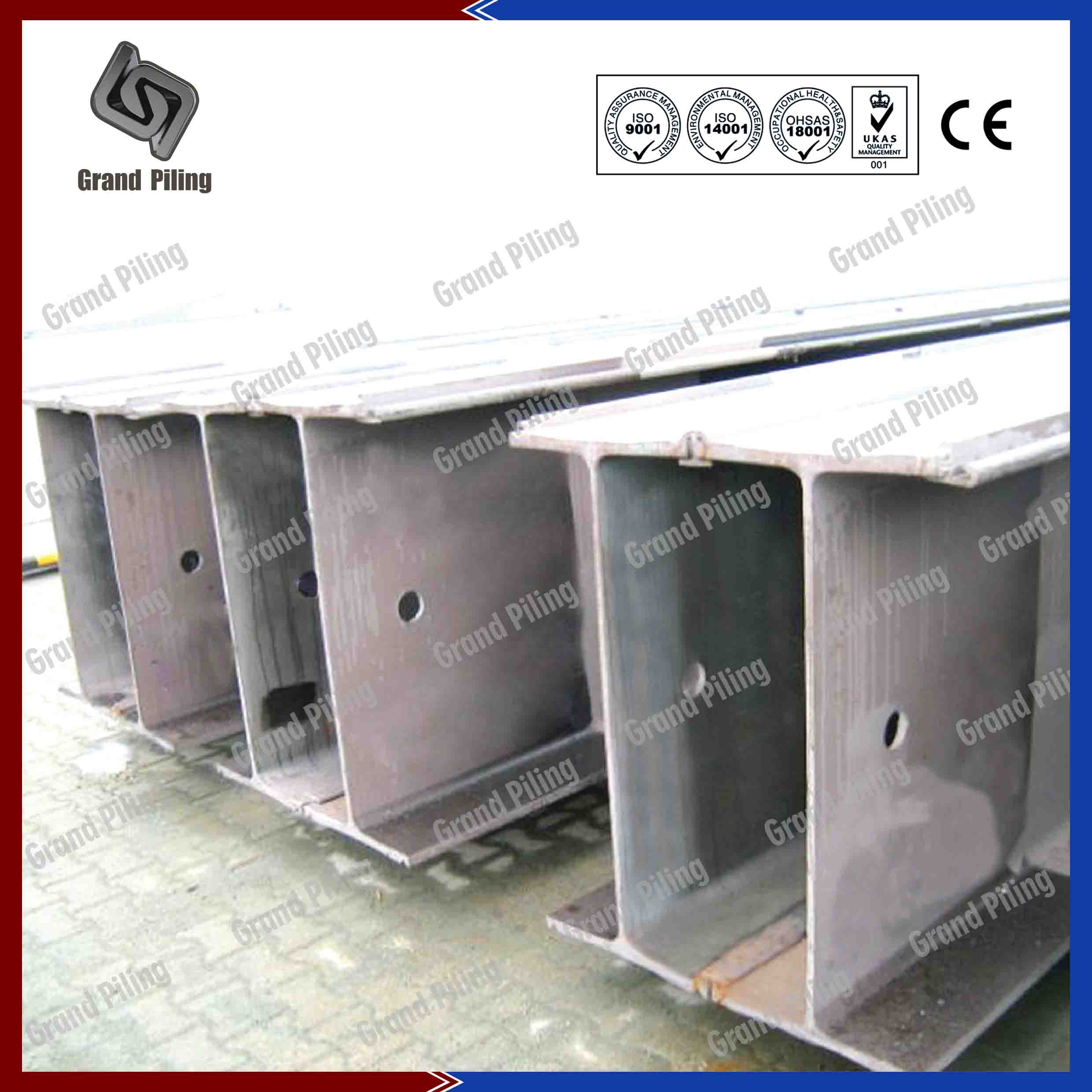

Waling Beams
Waling Beams
Waling Beams

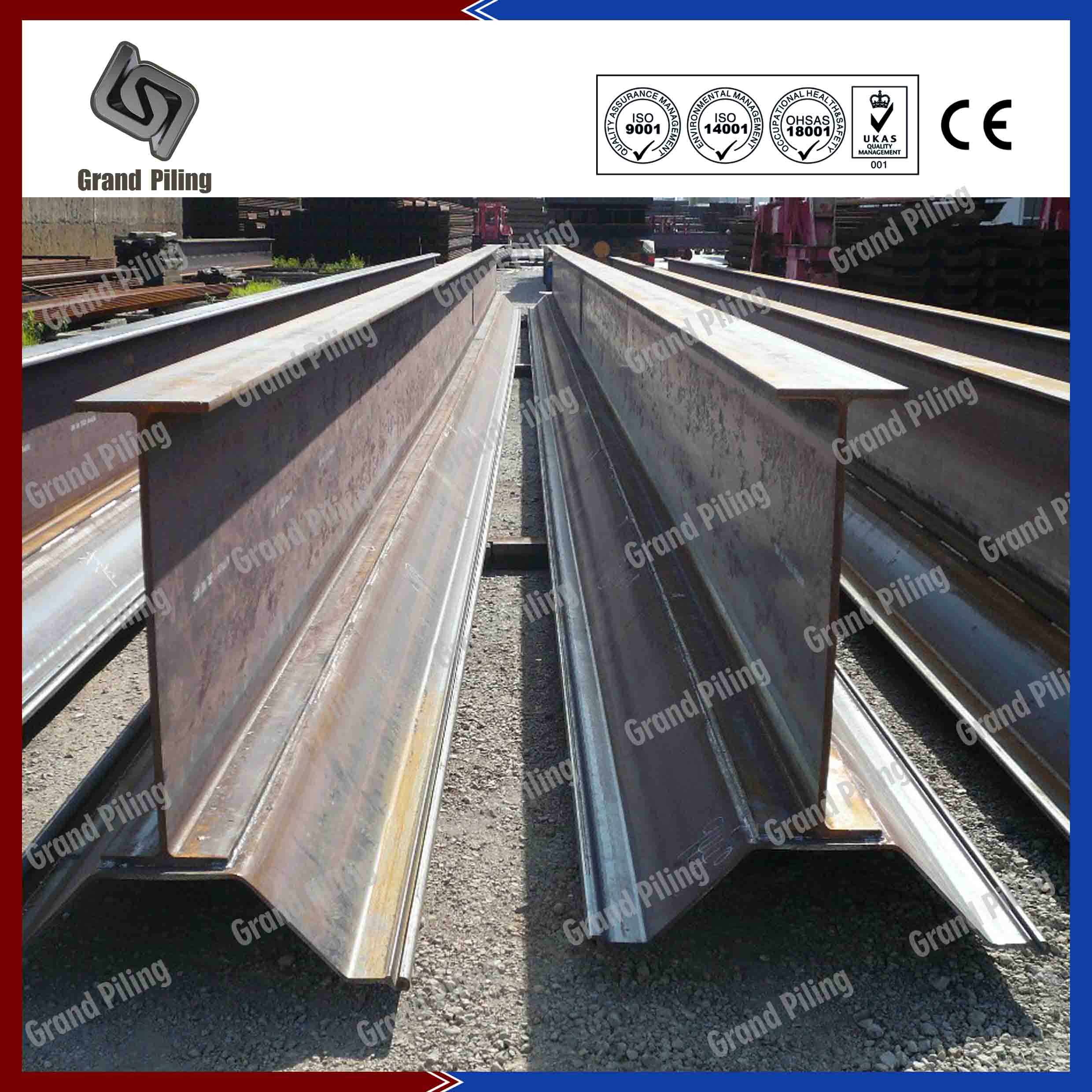

Waling Beams

Waling or walers transmit forces from sheet piling to anchorage,which are made of two spacer connected channel sections or I beams.A pair of I-beams or possibly a capping beam and I-beam combination can be fixed centrally by waling bolts to the wall. The whole sheet pile waling system consists of walings,waling joints,supporting bracket,supporting console,wailing bolt,bolt and nuts etc.Waling bolts provide the friction-type connection between the sheet piling and the load-bearing waling.There are two different types:Bolt with upset hexagon head and bolts threaded at both ends.

Channel steel and steel beams are the widely used options for sheet pile wale and sheet piling strutting. Extra sheet piling accessories are also produced from channel steel or steel columns, like the spacer between walers, the supporting console etc. H beams can also be used as HP bearing piles, King piles, HP foundation piles and other sheet pile accessories.



Our Advantages:

Ø We carry regular stock of 40,000 tons for hot rolled U steel channel and H beams. Shipment immediately .Length are normally 6m 9m and 12m.Steel grade in S235 and S355.For sheet piling contractors, the speed of sheet piling installation, sheet pile excavation, sheet piling driving is the key factor.
Ø We can do all fabrication works in our sheet piling factory, like drill holes, painting, welded back to back doubles, fabrications of support console, spacers, with bolts and nuts, all sheet pile products and sheet pile accessory. So that clients only need to assembly easily at construction site. We have exported sheet pile walings or sheet pile walers all over the world. Give us a call, and we will do all thing for you.



Channel steel:

There are different types of U channel steel on the market, like European standard channel (UPN), Parallel Flange Channel (PFC),British channels, Japanese channels, Korea channels. Most widely used steel channel is UPN channel steel and PFC channel steel. All can be used as sheet pile waling or sheet pile strut



European standard channel / UPN steel channel sizes:

Designation G
kg/m
Dimensions Surface
h
mm
b
mm
tw
mm
tf
mm
r1
mm
r2
mm
d
mm
ø AL
m2/t
Ag
m2/t
UPN80 08.64 80 45 6.0 8.0 8.0 4.00 46 - 0.312 36.13
UPN100
UPN120
UPN140
UPN160
UPN180
10.60
13.40
16.00
18.80
22.00
100
120
140
160
180
50
55
60
65
70
6.0
7.0
7.0
7.5
8.0
8.5
9.0
10.0
10.5
11.0
8.5
9.0
10.0
10.5
11.0
4.50
4.50
5.00
5.50
5.50
64
82
98
115
133
M10
M10
M12
M16
M16
0.372
0.434
0.489
0.546
0.611
35.10
32.52
30.54
28.98
27.80
UPN200
UPN220
UPN240
UPN260
UPN280
25.30
29.40
33.20
37.90
41.80
200
220
240
260
280
75
80
85
90
95
8.5
9.0
9.5
10.0
10.0
11.5
12.5
13.0
14.0
15.0
11.5
12.5
13.0
14.0
15.0
6.00
6.50
6.50
7.00
7.50
151
167
184
200
216
M16
M20
M20
M24
M24
0.661
0.718
0.775
0.834
0.890
26.15
24.46
23.34
22.00
21.27
UPN300
UPN320
UPN350
UPN380
46.20
59.50
60.60
63.10
300
320
350
380
100
100
100
102
10.0
14.0
14.0
13.5
16.0
17.5
16.0
16.0
16.0
17.5
16.0
16.0
8.00
8.75
8.00
8.00
232
246
282
313
M24
M24
M24
M24
0.950
0.982
1.047
1.110
20.58
16.50
17.25
17.59
UPN400 71.80 400 110 14.0 18.0 18.0 9.00 324 M27 1.182 16.46



Parallel Flange Channel / PFC metal channel

Designation Mass Depth
h
Width
b
Thickness Radius Second Moment Of Area
Web
S
Flange
t
Root
r1
Axis
x-x
cm4
Axis
y-y
cm4
kg/mtr mm mm mm mm mm
430x100x64
380x100x54
300x100x46
300x90x41
260x90x35
260x75x28
230x90x32
230x75x26
200x90x30
200x75x23
180x90x26
180x75x20
150x90x24
150x75x18
125x65x15
100x50x10
64.40
54.00
45.50
41.40
34.80
27.60
32.20
25.70
29.70
23.40
26.10
20.30
23.90
17.90
14.80
10.20
430
380
300
300
260
260
230
230
200
200
180
180
150
150
125
100
100
100
100
90
90
75
90
75
90
75
90
75
90
75
65
50
11
9.50
9
9
8
7
7.50
6.50
7
6
6.50
6
6.50
5.50
5.50
5
19
17.5
16.5
15.5
14.0
12.0
14.0
12.5
14.0
12.5
12.5
10.5
12.0
10
9.50
8.50
15
15
15
12
12
12
12
12
12
12
12
12
12
12
12
9
21940
15030
8229
7218
4728
3619
3518
2748
2523
1963
1817
1370
1162
861
483
208
722
643
568
404
353
185
334
181
314
170
277
146
253
131
80.00
32.30

For other U channel steel, steel channel or C channel steel, please contact us.



H beams:

H beam steel or I beam steel or H piles have been used wildly all over the world. Depending on different shapes and sizes, H beam steel have many variations in different countries: Universal Beams(UB), Universal Columns (UC), Universal Bearing Piles, American Wide Flange Beams (W Section), European Flange Beams (HE Section), European I Beams (IPE Section), European I Beams (IPN Section), Japanese Wide Flange Beams etc.



The HP and UBP bearing piles

Section Mass
(G)
Dimensions Steel Area Perimeter Moment Of inertia Section modulus
kg/m h
mm
b
mm
Tw
mm
tf
mm
cm2 cm2 y-y
cm4
z-z
cm4
y-y
cm3
y-y
cm3
z-z
cm3
HP220x57.2 57.2 210 224.5 11 11 72.9 1.265 5729 2079 545.6 185.2
HP260x87.3 87.3 253 267 14 14 111.2 1.505 12590 4455 994.9 333.7
HP260x75 75 249 265 12 12 95.54 1.493 10650 3733 855.1 281.7
HP305x110 110 307.9 310.7 15.3 15.4 140.2 1.8 23560 7709 1531 495
HP305x126 126 312.3 312.9 17.5 17.6 161 1.813 27410 9002 1755 577.2
HP305x149 149 318.5 316 20.6 20.7 190 1.832 33070 10910 2076 688.8
HP305x180 180 326.7 319.7 24.8 24.8 229.3 1.857 40970 13550 2508 847.4
HP305x186 186 328.3 320.9 25.5 25.6 237 1.861 42610 14140 2596 879.3
HP305x223 223 337.9 325.7 30.3 30.4 285 1.891 52700 17580 3119 1081
HP305x88 88 301.7 307.8 12.3 12.4 111.6 1.782 18420 5984 1221 387.3
HP305x95 95 303.7 308.7 13.3 13.3 121.7 1.788 20040 6529 1320 425.1
HP320x103 103 307 306 14 14 131 1.764 22050 6704 1437 438.2
HP320x117 117 311 308 16 16 149.5 1.776 25480 7815 1638 507.5
HP320x147 147 319 312 20 20 186.9 1.8 32670 10160 2048 651.3
HP320x184 184 329 317 25 25 234.5 1.83 42340 13330 2574 841.2
HP320x88.5 88.5 303 304 12 12 112.7 1.752 18740 5634 1237 370.6
HP360x109 109 346.4 371 12.8 12.9 138.9 2.123 30630 10990 1769 590.7
HP360x133 133 352 373.8 15.6 15.7 168.5 2.14 37980 13680 2158 725.3
HP360x152 152 356.4 376.0 17.8 17.9 193.8 2.153 43970 15880 2468 842.3
HP360x174 174 361.4 378.5 20.3 20.4 221.7 2.169 51010 18460 2823 973.5
HP360x180 180 362.9 378.8 21.1 21.1 229.5 2.173 53040 19140 2923 1011
HP360x84.3 84.3 340 367 10 10 107.3 2.102 23190 8243 1364 449.2
HP400x122 122 348 390 14 14 155.9 2.202 34770 13850 1998 710.3
HP400x140 140 352 392 16 16 178.6 2.214 40270 16080 2288 820.2
HP400x158 158 356 394 18 18 201.4 2.226 45940 18370 2581 932.4
HP400x176 176 360 396 20 20 224.3 2.238 51770 20720 2876 1047
HP400x194 194 364 398 22 22 247.5 2.25 57760 23150 3174 1163
HP400x213 213 368 400 24 24 270.7 2.262 63920 25640 3474 1282
HP400x231 231 372 402 26 26 294.2 2.274 70260 28200 3777 14
