Grand Steel Piling
/ Products / Trench Sheets

Product Photos

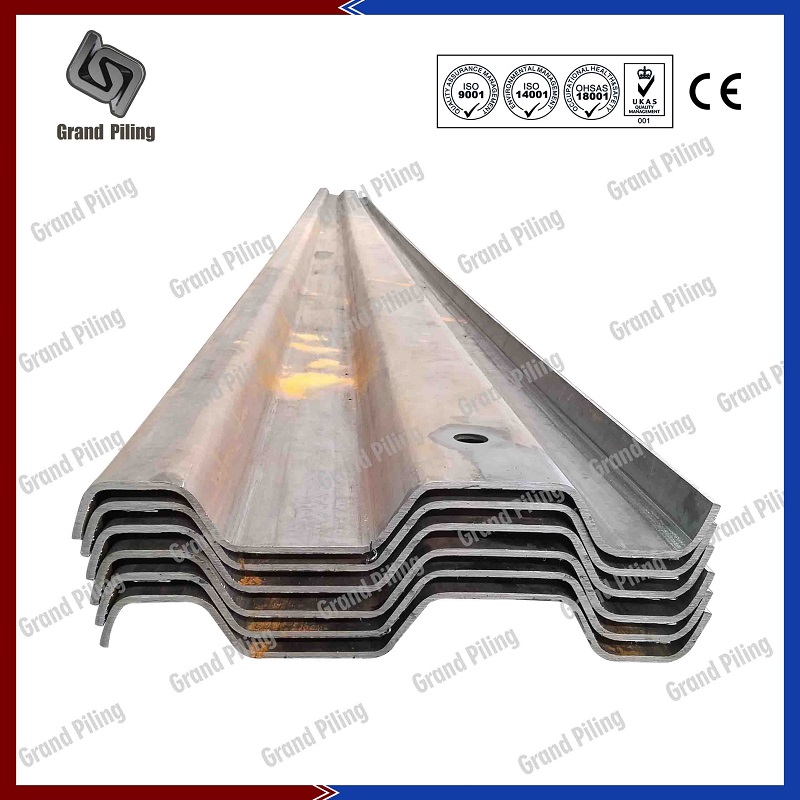

Trench Sheets

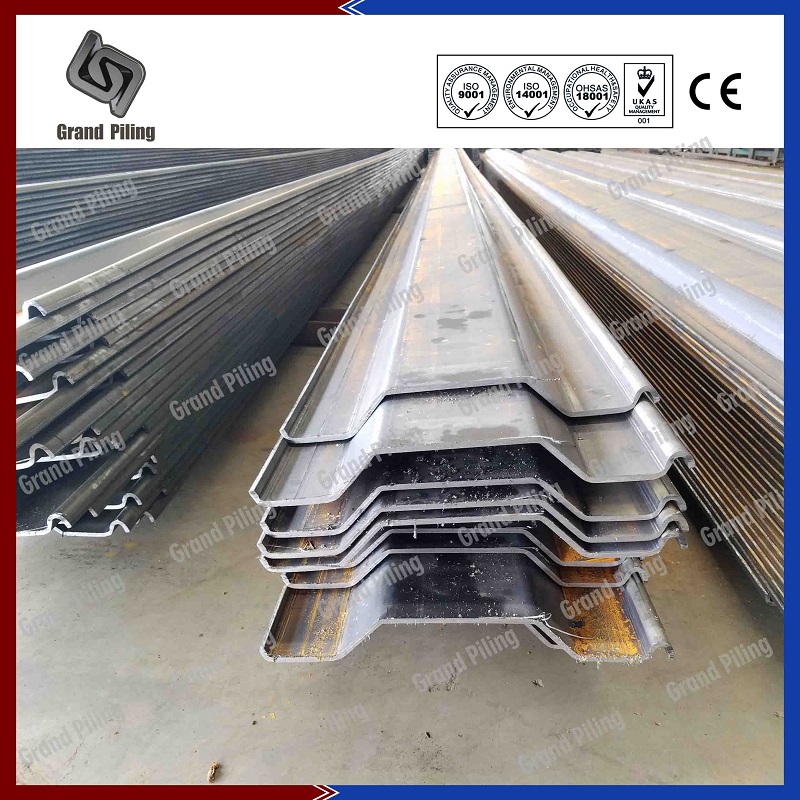

Trench Sheets

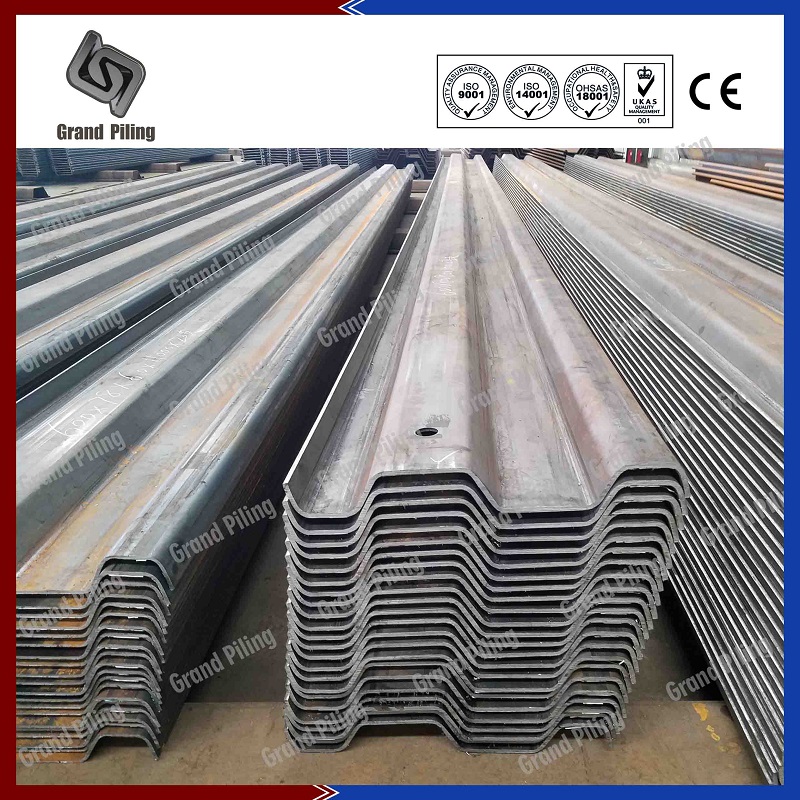

Trench Sheets

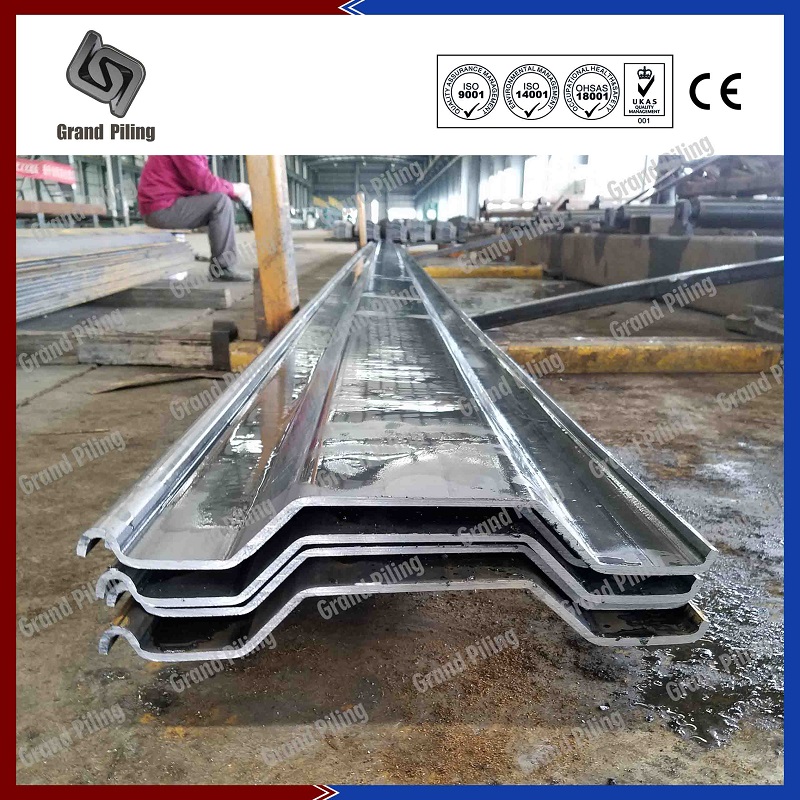

Trench Sheets

Trench Sheet

Trench sheets are designed to support vertical faces of small to medium excavations. Trench sheeting can be installed by excavators with Quick Release Shackle through the slinging holes at end of the sheet. Trench sheet piles are driven with a Driving Cap, which prevent trench sheets from damages. Extraction Clamps can protect the sheet when extracted. We can offer a complete services, from trench design, production and supply, until excavation and extraction, driving, installations. China sheet piling are normally used to support earth banks to protect the workers and are ideal for waterway banks mainly because trench sheeting's strength, speed of installation and flexibility. Sheet pile products can also be used many times because they can be extracted easily without any shape deformations.

Steel trench sheets can be supplied in a variety of profiles and length and steel grades. Overlapping trench sheets are without interlocks. While interlocking trench sheeting is like other kind of sheet piles, connected with interlocks. Since trench sections are also produced from cold rolling technology, so any sections can be produced, like RC sections etc.



Our Advantages

Ø The Trench profile sheet pile is a light weight trench sheet with simple overlap connection. Designed for fast re-uses with low strength requirements, such as pipeline installation
Ø Actual re-uses will be determined by trench sheet pile length, and pile conditions.
Ø Especially popular in Middle east countries, Australia, where soils are not so hard.and we can do the sheet piling design, sheet piling calculation,sheet pile costs. etc for our clients



Trench Sheeting Catalog



Section Dimensions Mass Per meter of wall
Width Height Thickness Single
pile
Wall Modulus of
Section
Moment of
Inertia
w h t W I
mm mm mm Kg/m kg/m2 cm3 cm4
GPT600-6 600 78 6 37.5 62 184 722
GPT600-7 600 79 7 44.5 74.1 232 835
GPT600-8 600 80 8 50 83 237 955
GPT600-9 600 81 9 55.53 92.55 263 1072



Section Dimensions Mass Moment of inertia Modulus of Section
Width Height Thickness Per pile Wall
w h t
mm mm mm kg/m kg/m2 cm4/m cm3/m
GPT 330-3 330 34 3 9.72 29.45 68 40
GPT 330-3.5 330 34.5 3.5 11.34 34.36 79 46
GPT 330-4 330 35 4 12.96 39.29 91 52
GPT 330-4.5 330 35.5 4.5 14.53 44.04 103 57
GPT 330-5 330 36 5 16.09 48.76 114 63
GPT 400-4 400 37 4 15.62 39.05 100 49
GPT 400-5 400 49 5 18.52 46.3 208 84
GPT 400-5.5 400 49.5 5.5 20.37 50.92 229 91
GPT 400-6 400 50 6 22.23 55.57 250 99
GPT 500-5 500 49 5 22.45 44.9 215 86
GPT 500-6 500 50 6 26.94 53.88 258 101
GPT 742-5 742 91 5 33.79 45.54 745 163
GPT 742-6 742 92 6 40.9 54.66 893 194
GPT 742-6.5 742 92.5 6.5 43.72 58.9 967 209
GPT 742-7 742 93 7 47.03 63.4 1042 224
GPT 742-7.5 742 93.5 7.5 50.3 67.8 1116 239
GPT 742-8 742 94 8 53.56 72.18 1197 254
GPT 742-9 742 95 9 60.26 81.21 1346 283
GPT 880-4 880 152 4 41.2 46.8 1897 261
GPT 880-6 880 154 6 61.9 70.3 2858 382
GPT 880-8 880 156 8 84.6 96.1 3890 510

Note: This table is only part of our sizes. We have over 1000 different sizes. We can adjust our machine to produce in any width,Height and thickness. Please contact us if your size is not in above table.

Downloads:

Sheet Pile Brochure

Our Latest Brochure

P1-5:Introduction P6-7:Z type sheet pile
P8-9:Corner section P10-11:Z type sheet pile
P12-15:U type sheet pile P16-17:Omega sheet pile
P18-19:Trench sheet P20-21:Straight web pile
P20-21:Steel grade P22-27:Tubular combiwall
P28-31:HZ combiwall P32-39:Global projects


Download in Different Language

Technical Details

1.  COTECNA Philippine Shipment Report   2.  SGS Inspection Report for Sheet Pile   3.  BV Inspection Report for Sheet Pile   4.  Sheet Pile Quality Control Document   5.  Steel Sheet Piling MTC   6.  Baosteel MTC   7.  Design and Construction Manual for Our Sheet Pile
