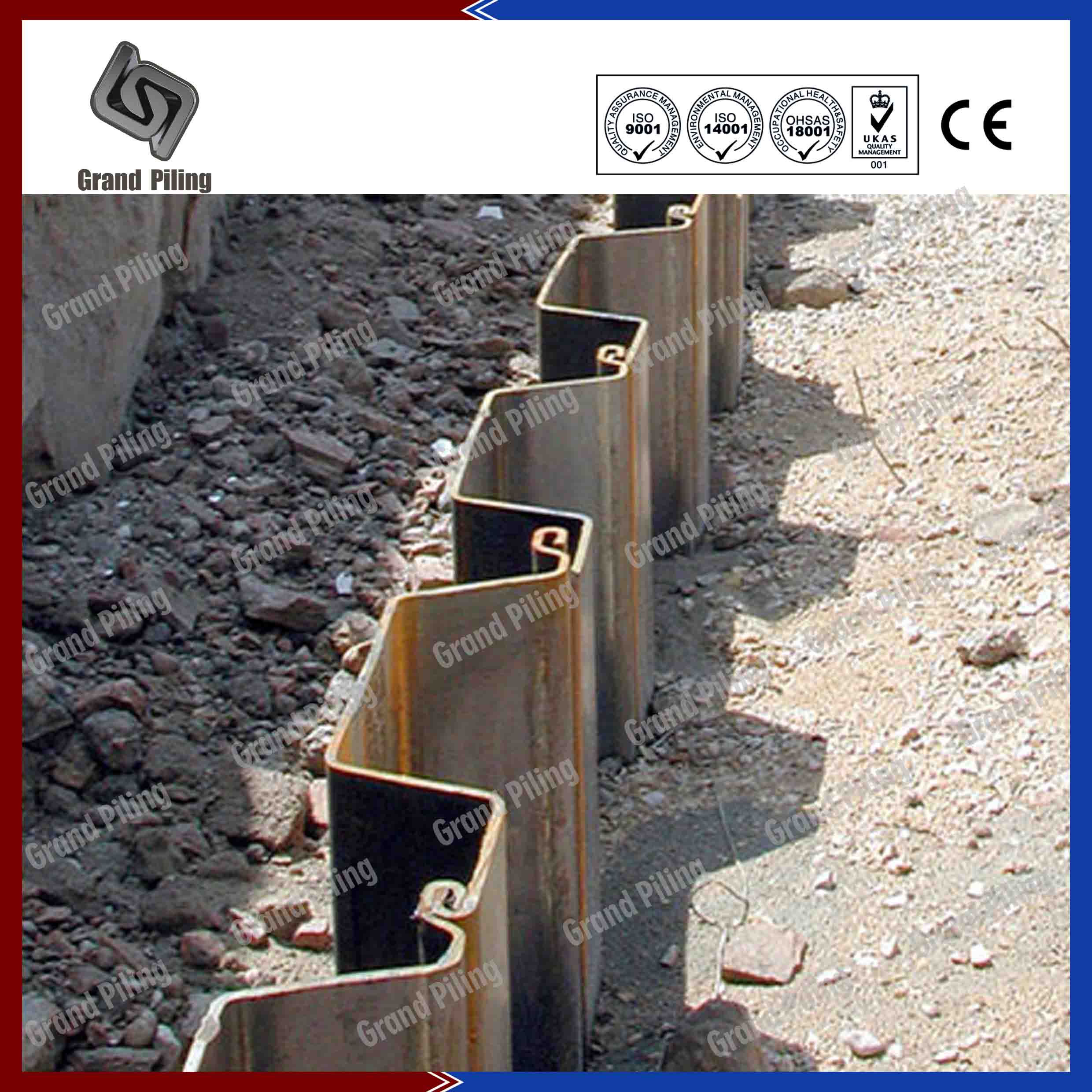

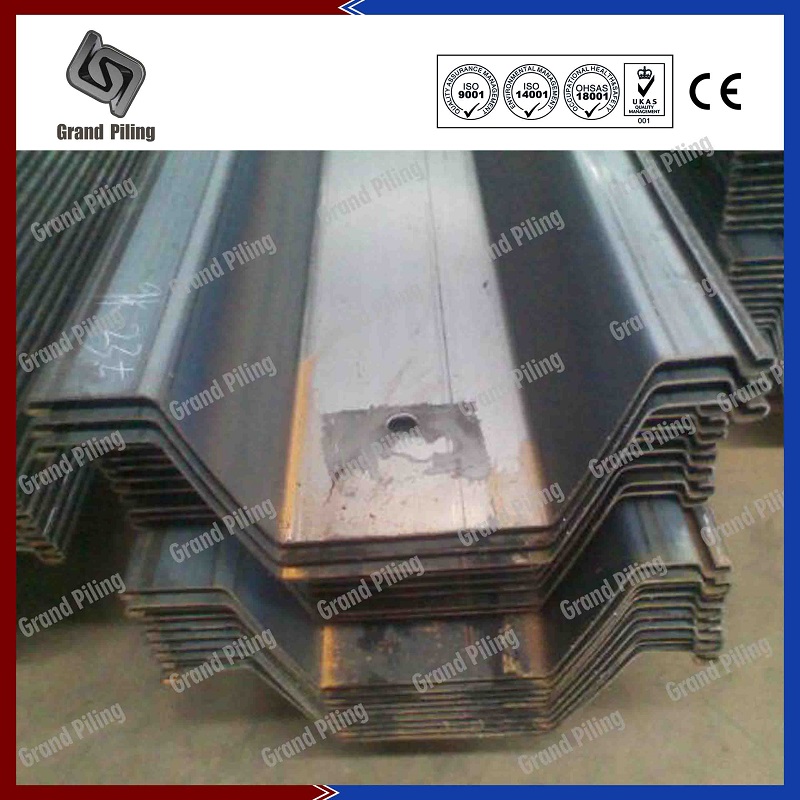

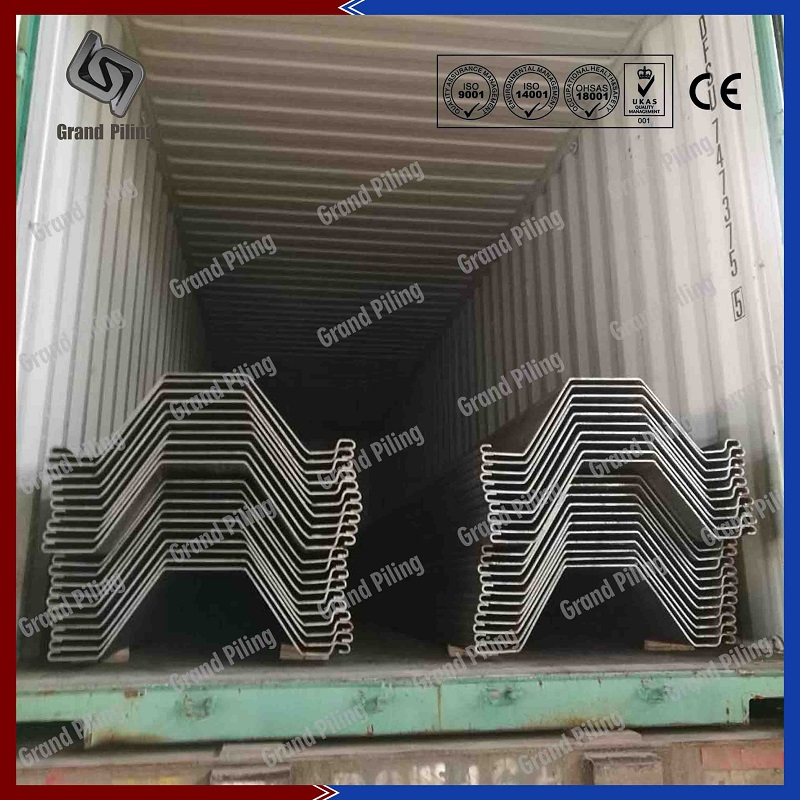

omega type sheet piles

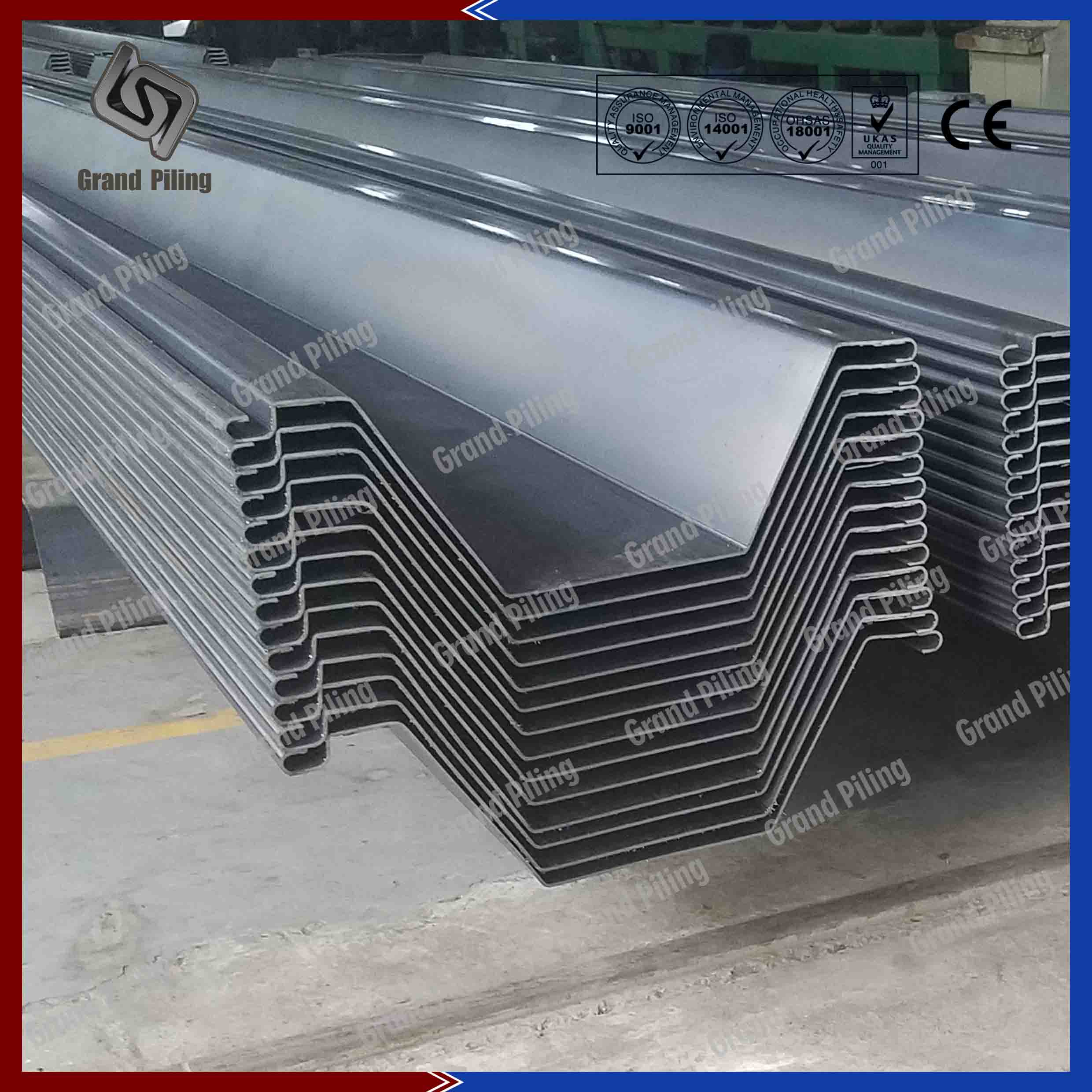

omega type sheet piles

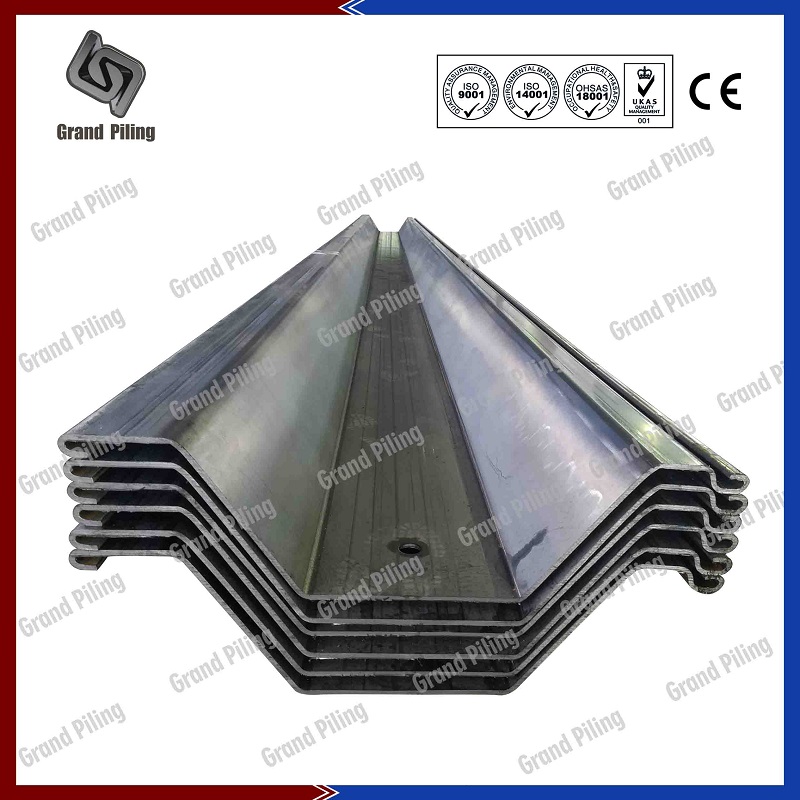

omega type sheet piles

Omega Type Sheet pile

Omega type sheet pile have several other names in different markets, like pan type sheet pile in US market, hat type sheet pile for Japan and Korea, L type sheet pile, S type sheet pile for Europe sheet piles. Omega type sheet piles are mostly used in China and Asia, invented by Oriental sheet pile. All pan type sheet piles are light gauge sheet piling, with smaller properties than other dimensions and specifications. The hat type sheet piles are intended for short and light loaded walls, like drainage ditches, retaining walls for private home, and gold courses. The Omega type sheet pile has a hat shape cross sections with relatively thin but larger sectional areas. This allows efficient implementation of pile driving work, which can secure higher structural reliability and more economically.  China sheet pile is more rigid than U or Z sections, sheet piling contractors can control the pile deformation more easily. As a result, hat sections can be driven in a very long length.

The interlocks are at the outermost part of L/S type sheet pile, the neutral axis of each pile is same with the whole sheet piling wall. This means that the L/S type sheet pile can display its structural performances in different ground conditions. Sometimes, China sheet piles can be handled and installed with small hammer or rig or driver. The pan type sheet pile is a structural steel product that incorporate the sheet piling manufacturing technology and application technology relating to construction works. Hat type sheet piling will help to cut down the sheet piling costs and sheet piling prices.



Our Advantages

Ø L type or S type sheet pile, or omega sheet piles mostly are used for river bank protection, where the space is small. or can also be used as deadman wall or anchored wall to hold bank the main sheet piling wall. China sheet piles can produce various specifications.
Ø Omega type steel sheet pile has bigger width, and smaller thickness, so very light, and very popular in Western European market. Sheet pile supplier in China continue this tradition.
Ø Our sheet pile machines can be adjusted to fulfill all your project requirements,like sheet pile strutting, sheet pile dewatering.
Ø We can provide suggestions on sheet pile hammers, sheet pile machine, sheet pile driver, sheet pile rig etc. relative sheet piling accessories and products.And we are very familiar with sheet pile construction.



Sheet Pile Profiles

Section Dimensions Mass Moment of inertia Modulus of Section
Width Height Thickness Per pile Wall
w h t
mm mm mm kg/m kg/m2 cm4/m cm3/m
GPL 333-3 333 37 3 10.78 32.39 84 42
GPL 333-3.5 333 38 3.5 12.58 37.77 98 48
GPL 333-4 333 39 4 14.38 43.18 112 54
GPL 333-5 333 74 5 21.66 65 642 167
GPL 333-6 333 75 6 25.9 77.77 766 196
GPL 434-3.5 434 38 3.5 14.39 33.15 98 52
GPL 494-5 494 74 5 28.02 56.72 621 156
GPL 494-6 494 75 6 33.53 67.88 747 186
GPL 600-3 600 127 3 19.73 32.9 1038 156
GPL 600-3.5 600 128 3.5 23.08 38.3 1215 183
GPL 600-4 600 128 4 26.15 43.58 830 124
GPL 600-5 600 129 5 32.72 54.1 1728 257
GPL 600-6 600 130 6 38.8 64.6 2067 306
GPL 660-3 660 89 3 19.4 29.4 500 112
GPL 660-4 660 90 4 25.8 39.2 666 147
GPL 660-5 660 91 5 32.2 48.8 831 181
GPL 700-4 700 146 4 30.8 44 1945 265
GPL 700-5 700 148 5 39.4 56.2 2576 343
GPL 700-6 700 148 6 46.2 66 3080 410
GPL 700-7 700 150 7 54.34 77.6 3591 474
GPL 700-7.5 700 151 7.5 58.22 83.17 3846 507
GPL 700-8 700 151 8 61.9 88.45 4100 540
GPL 711-3 711 125 3 23.5 33.1 1244 199
GPL 711-4 711 126 4 31.3 44 1655 261
GPL 711-5 711 127 5 39 54.9 2063 322
GPL 750a-4 750 250 4 37.4 49.9 6535 511
GPL 750a-5 750 251 5 46.6 62.2 8142 632
GPL 750a-6 750 252 6 55.7 74.3 9732 750
GPL 750a-7 750 253 7 68.6 91.5 11880 956
GPL 750a-8 750 254 8 78.6 104.8 13586 1093
GPL 750b-6 750 283 6 57.46 76.6 11375 788
GPL 750b-7 750 284 7 67 89.3 13263 912
GPL 750b-8 750 285 8 76.6 102 15170 1044
GPL 804-6 804 295 6 60.4 75.1 12059 803
GPL 804-7 804 296 7 70.4 87.5 14030 934
GPL 804-8 804 297 8 80.3 99.8 15995 1063
GPL 813-4 813 293 4 39 48 7897 537
GPL 813-5 813 294 5 48.7 59.9 9858 669
GPL 813-6 813 295 6 58.3 71.8 11813 801
GPL 840-6 840 250 6 57.46 68.4 7832 617
GPL 840-7 840 251 7 67 79.76 9128 718
GPL 840-8 840 252 8 76.61 91.2 10474 817
GPL 900-5 900 310 5 55.8 62 12276 785
GPL 900-6 900 310 6 66.6 74 13684 891
GPL 900-7a 900 310 7 77.4 86 16013 1042
GPL 900-7b 900 350 7 81 91 20805 1205
GPL 900-8a 900 310 8 88.5 98.3 18306 1184
GPL 900-8b 900 350 8 93.6 104 23715 1365
GPL 900-8.8 900 230 8.8 86.4 96 10500 902
GPL 900-9 900 350 9 104.4 116 36635 1525
GPL 900-10.3 900 300 10.3 113 126 24400 1610
GPL 900-12.5 900 368 12.5 147 163 45000 2450
GPL 900-14 900 370 14 167 186 51100 2760
GPL 921-4 921 252 4 39 42.3 5101 404
GPL 921-5 921 253 5 48.7 52.8 6363 504
GPL 921-6 921 254 6 58.3 63.3 7620 600

Note: This table is only part of our sizes.We have over 1000 different sizes. We can adjust our machine to produce in any width, Height and thickness. Please contact us if your size is not in above table.

Downloads:

Sheet Pile Brochure

Our Latest Brochure

P1-5:Introduction P6-7:Z type sheet pile
P8-9:Corner section P10-11:Z type sheet pile
P12-15:U type sheet pile P16-17:Omega sheet pile
P18-19:Trench sheet P20-21:Straight web pile
P20-21:Steel grade P22-27:Tubular combiwall
P28-31:HZ combiwall P32-39:Global projects


Download in Different Language

Technical Details

1.  COTECNA Philippine Shipment Report   2.  SGS Inspection Report for Sheet Pile   3.  BV Inspection Report for Sheet Pile   4.  Sheet Pile Quality Control Document   5.  Steel Sheet Piling MTC   6.  Baosteel MTC   7.  Design and Construction Manual for Our Sheet Pile

Global Projects

Negros Occidental,Philipines
Negros Occidental,Philipines
Noordwillemskaaai, Netherlands
Noordwillemskaaai, Netherlands
Marmul Rationalization Project, Oman
Marmul Rationalization Project, Oman
RAPID Petronas Project, Singapore
RAPID Petronas Project, Singapore

See more of Cold Rolled Sheet Pile Projects
